標題: 【角色茶桌】—— Request for the remarks on installation of Asterisk server [打印本頁]
作者: 角色    時間: 2011-9-3 10:24     標題: 【角色茶桌】—— Request for the remarks on installation of Asterisk server

本帖最後由 角色 於 2011-9-4 14:16 編輯

Since I have not complied Asterisk server for a long time, I almost forgot the compilation details when we install an Asterisk server.

All I know is to
1) download the CentOS 5.6 from the official website www.centos.org,
2) choose the server mode to install the CentOS,
3) yum -y update the CentOS
4) downland the tar ball 1.8.6.0 tar ball from www.asterisk.org and put it into the /usr/scr/asterisk directory

As far as I know, we may need to download other files in order to install the asterisk server. If you know it, please let me know.

YH
作者: bubblestar    時間: 2011-9-3 13:05

SVN method:

Depending on your needs, some packages are optional.
  1. yum -y install gcc gcc-c++ libxml2-devel ncurses-devel openssl-devel mysql-devel sqlite-devel unixODBC-devel libtool-ltdl-devel freetds-devel libvorbis-devel alsa-lib-devel bluez-libs-devel curl-devel libtiff-devel  libssl-dev speex speex-devel libusb-devel CIG-devel openldap-devel gmime-devel net-snmp-devel flex bison lua-devel subversion make gnutls-devel gnutls-utils kernel-devel newt-devel mlocate lynx tar wget nmap bzip2 mod_ssl crontabs vixie-cron libxml2 texinfo neon neon-devel

  3. # If you are using E1 cards you need to install LIBPRI.
  4. cd /usr/src/asterisk-complete/libpri
  5. svn co http://svn.asterisk.org/svn/libpri/tags/1.4.12 libpri-1.4.12
  6. cd libpri-1.4.12
  7. make && make install

  9. cd /usr/src/asterisk-complete
  10. wget http://downloads.asterisk.org/pub/telephony/libss7/libss7-1.0.2.tar.gz
  11. tar zxvf libss7-1.0.2.tar.gz
  12. cd libss7-1.0.2
  13. make && make install

  15. # install dahdi
  16. cd /usr/src/asterisk-complete/dahdi
  17. svn co http://svn.asterisk.org/svn/dahdi/linux-complete/tags/2.5.0+2.5.0 dahdi-2.5.0+2.5.0
  18. cd dahdi-2.5.0+2.5.0
  19. make && make install && make config
  20. chkconfig dahdi on
  21. service dahdi start

  23. # Channel Drivers > chan_nbs
  24. cd /usr/src/asterisk-complete
  25. svn co http://svn.digium.com/svn/nbs/trunk nbs-trunk
  26. cd nbs-trunk
  27. make && make install

  29. # Codec Translators > codec_resample
  30. cd /usr/src/asterisk-complete
  31. svn co http://svn.digium.com/svn/thirdparty/libresample/trunk libresample-trunk
  32. cd libresample-trunk
  33. ./configure && make && make install

  35. # Resource Modules > res_srtp
  36. cd /usr/src/asterisk-complete
  37. wget -O srtp-1.4.4.tgz http://sourceforge.net/projects/srtp/files/srtp/1.4.4/srtp-1.4.4.tgz/download
  38. tar xvzf srtp-1.4.4.tgz
  39. cd srtp
  40. ./configure && make && make install

  42. # Resource Modules > res_calendar_caldav res_calendar_exchange res_calendar_icalendar
  43. cd /usr/src/asterisk-complete
  44. wget -O libical-0.44.tar.gz http://sourceforge.net/projects/freeassociation/files/libical/libical-0.44/libical-0.44.tar.gz/download
  45. tar zxvf libical-0.44.tar.gz
  46. cd libical-0.44
  47. ./configure --enable-shared && make && make install

  49. # Resource Modules > res_jabber, Channel Drivers >  chan_local chan_jingle
  50. cd /usr/src/asterisk-complete
  51. wget http://packages.sw.be/iksemel/iksemel-devel-1.4-1.el6.rf.i686.rpm
  52. wget http://packages.sw.be/iksemel/iksemel-1.4-1.el6.rf.i686.rpm
  53. rpm -Uvh iksemel-devel-1.4-1.el6.rf.i686.rpm iksemel-1.4-1.el6.rf.i686.rpm

  55. # Resource Modules > res_calendar_ews
  56. cd /usr/src/asterisk-complete
  57. wget -c http://www.webdav.org/neon/neon-0.29.6.tar.gz
  58. tar xvzf neon-0.29.6.tar.gz
  59. cd neon-0.29.6
  60. ./configure --enable-shared --with-ssl && make && make install

  62. # Applications > app_osplookup
  63. cd /usr/src/asterisk-complete
  64. wget -O OSPToolkit-3.6.1.tar.gz http://sourceforge.net/projects/osp-toolkit/files/osp-toolkit/OSPToolkit%203.6.1/OSPToolkit-3.6.1.tar.gz/download
  65. tar xvzf OSPToolkit-3.6.1.tar.gz
  66. cd TK-3_6_1-20100107/src
  67. make clean && make build && make install
  68. # et pour asterisk:
  69. ./configure --with-osptk=/usr/local/include/osp

  71. # Compiler Flags > hoard
  72. cd /usr/src/asterisk-complete
  73. wget -c http://www.cs.umass.edu/%7Eemery/hoard/hoard-3.8/source/hoard-38.tar.gz
  74. tar xvzf hoard-38.tar.gz
  75. cd hoard-38/src
  76. make linux-gcc-x86
  77. # et pour asterisk:
  78. ./configure --with-hoard=/usr/src/hoard-38/src
  79. echo "/usr/src/hoard-38/src" >> /etc/ld.so.conf

  81. # Codec Translators > codec_speex
  82. cd /usr/src/asterisk-complete
  83. wget http://downloads.xiph.org/releases/speex/speex-1.2rc1.tar.gz
  84. tar xvzf speex-1.2rc1.tar.gz
  85. cd speex-1.2rc1
  86. ./configure && make && make install

  88. # Applications > res_fax, Resource Modules > res_fax_spandsp
  89. cd /usr/src/asterisk-complete
  90. wget http://soft-switch.org/downloads/spandsp/spandsp-0.0.6pre18.tgz
  91. tar xvzf spandsp-0.0.6pre18.tgz
  92. cd spandsp-0.0.6
  93. ./configure && make && make install
  94. echo "/etc/ld.so.conf.d/usrlocallib.conf" /usr/local/lib
  95. cat >> /etc/ld.so.conf.d/usrlocallib.conf /usr/local/lib
  96. ldconfig

  98. # PBX Modules > pbx_lua
  99. cd /usr/src/asterisk-complete
  100. wget http://www.lua.org/ftp/lua-5.1.4.tar.gz
  101. tar xvzf lua-5.1.4.tar.gz
  102. cd lua-5.1.4
  103. make linux && make install
  104. cd /usr/src/asterisk-complete/asterisk
  105. echo "/usr/local/lib" >> /etc/ld.so.conf
  106. ldconfig -v

  108. #optional; If you also want to build the PDF manual (but you don't need to, you will need an optional tool called rubber that compiles Latex into a PDF
  109. cd /usr/src/asterisk-complete
  110. wget http://launchpad.net/rubber/trunk/1.1/+download/rubber-1.1.tar.gz
  111. tar zxvf rubber-1.1.tar.gz
  112. cd rubber-1.1
  113. ./configure && make && make install

  115. # install asterisk
  116. cd /usr/src/asterisk-complete/asterisk
  117. #get branch
  118. svn co http://svn.asterisk.org/svn/asterisk/branches/1.8 asterisk-1.8
  119. #get trunk
  120. svn checkout http://svn.asterisk.org/svn/asterisk/trunk asterisk-1.8
  121. cd asterisk-1.8
  122. ./configure
  123. #this is only for format MP3 - SVN required
  124. contrib/scripts/get_mp3_source.sh
  125. contrib/scripts/get_ilbc_source.sh
  126. make menuselect
  127. make && make install
  128. make samples
  129. make progdocs
  130. make config
  131. make install-logrotate

  133. chkconfig asterisk on
  134. service dahdi start
  135. service asterisk start

  137. # Optional: GUI installation
  138. http://etel.wiki.oreilly.com/wiki/index.php/Install_the_Asterisk_GUI
  139. # finally install asterisk-gui 2.0; may or may not work for you
  140. cd /usr/src/asterisk-complete
  141. svn co http://svn.digium.com/svn/asterisk-gui/branches/2.0 asterisk-gui
  142. cd asterisk-gui
  143. ./configure
  144. make && make install
  145. make samples
複製代碼
作者: ckleea    時間: 2011-9-3 14:14

Where is this tutorial coming from? It is more complete than that I used before.
作者: bubblestar    時間: 2011-9-3 14:42

I found that most of the tutorials from English speaking world is sometimes limited, especially for Asterisk 1.8. Hence, I started searching the tutorial in some non-English environment long time ago.  The above information was mainly come from a French website, I also add additional information from another Korean and Japanese site with my own experience getting from many installation trial.

The french website is http://www.asterisk-france.org/c ... risk-1.8-sur-CentOS

Google is my friend and Google translation is also my friend too!
作者: ckleea    時間: 2011-9-3 15:01

What is the purpose of hoard and chan_NBC?
作者: bubblestar    時間: 2011-9-3 17:46

Umm….. you got me!  Don't know what the hoard in depth.  What I understand is that it can help speeding up Asterisk and dramatically improve application performance, especially for multithreaded programs running on multiprocessors and multicore CPUs.

Chan_nbs is network broadcast sound support channel driver.  I think there is no harm to install it in Asterisk when it is related to sound driver and even don't know how it works behind.

No more supplement here.
作者: ckleea    時間: 2011-9-3 20:03

回復 6# bubblestar


    Have you installed both?
作者: bubblestar    時間: 2011-9-3 22:47

Yes, I have installed both.
作者: ckleea    時間: 2011-9-4 06:59

回復 2# bubblestar


    This is the most complete one except that one is not working. I also forgot the installation requirement for google talk and calendar
作者: bubblestar    時間: 2011-9-4 11:12

本帖最後由 bubblestar 於 2011-9-4 11:17 編輯

最初試裝Asterisk 1.8 的時候，遇到很多問題，又有很多不知名、不熟悉及難明的困難，及後，不斷探索，最後整理成現有的安裝程序，現在安裝時使用這一套已經很順利了，我也重覆安裝了很多次，沒有什麼問題發生，所以我把它記錄成文字存檔，方便日後再使用。

Google talk and Calendar，按照以上的步驟便可以了。

至於為什麼要 yum install 這麼多的libraries 和 packages 呢? 哈哈! 懶囉! 也為了省時間嘛! 主要原因是因為我在後來要加入一些功能所需而要把它們預先安裝罷了，例如，iaxmodem、HylaFax、AvanFax、SMS 之類的東西。
假如只需要安裝Asterisk 1.8，有很多是不需要去yum install 的。
作者: 角色    時間: 2011-9-4 13:16

Many thanks.

YH
作者: ckleea    時間: 2011-9-4 13:49

This is not working

# Applications > app_osplookup
作者: bubblestar    時間: 2011-9-4 18:14

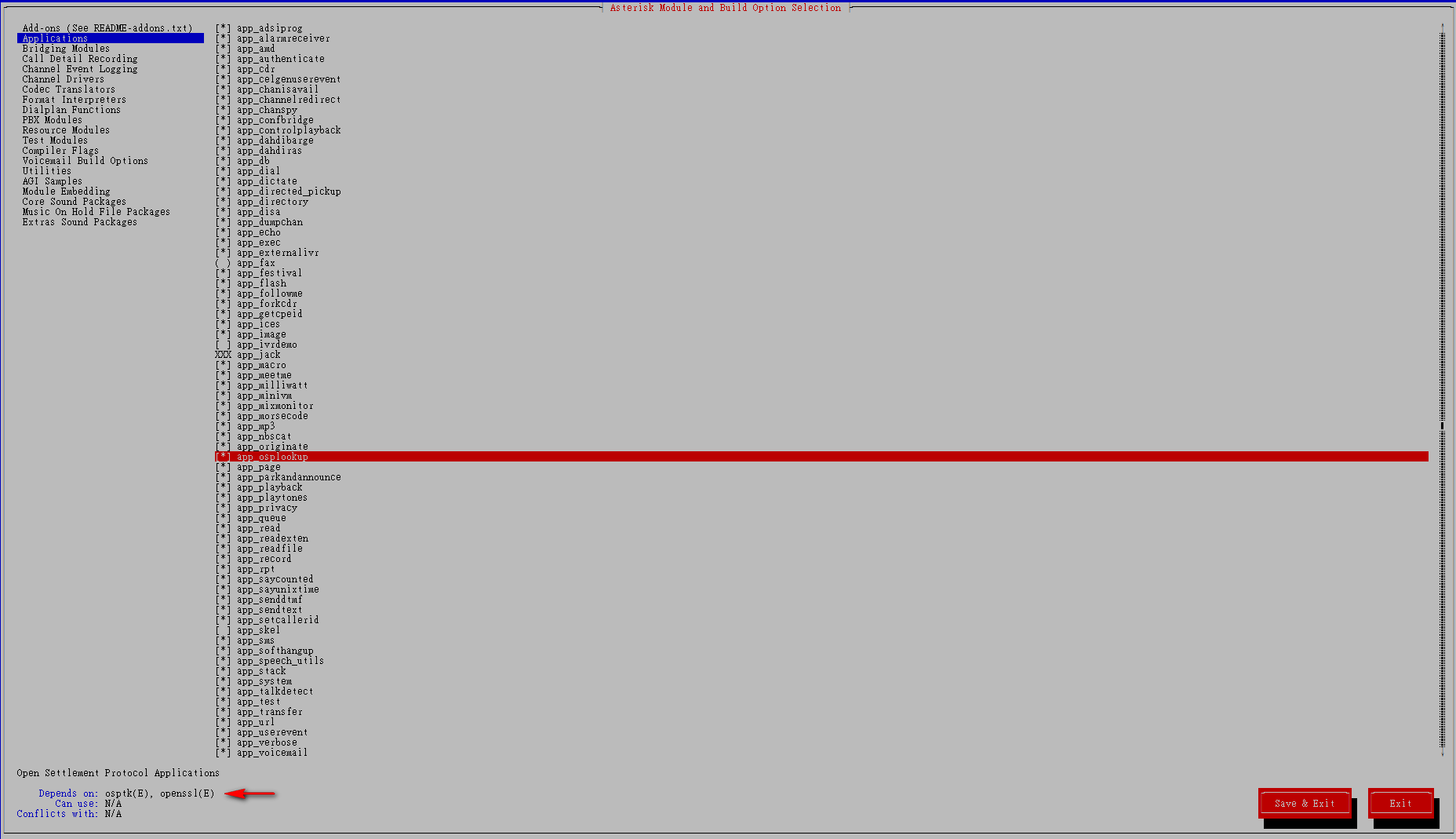

I have no ideas.  Mine in the menuselect is like the attached screen cap. as below. Are you missing some dependencies?


圖片附件: osplookup.png (2011-9-4 18:13, 32.5 KB) / 下載次數 796
http://www.telecom-cafe.com/forum/attachment.php?aid=863&k=705fb75a2b191c7b578af78586c17550&t=1714256790&sid=HEuUHQ

作者: 角色    時間: 2011-9-17 18:51

回復 13# bubblestar

为什么你的图片那么大，而我的图那么小，你是否用Graphics GUI做出来，或者用VNC呢？

角色
作者: bubblestar    時間: 2011-9-17 19:02

把Putty 的屏幕全屏顯示吧!
作者: 角色    時間: 2011-9-17 21:49

回復 2# bubblestar

Is this the installation scripts (in the form of a file) that you use when you installed your Asterisk?

YH
作者: ckleea    時間: 2011-9-17 22:06

回復 16# 角色

You can but it would be easier for cut and paste.

A script file is always helpful.
