標題: Installation of Asterisk-GUI on Asterisk 13.x.x [打印本頁]
作者: 角色    時間: 2014-12-20 19:33     標題: Installation of Asterisk-GUI on Asterisk 13.x.x

We may make use of the information in [1] to install Asterisk-GUI on Asterisk 13.x.x.

References:
[1] http://www.telecom-cafe.com/foru ... hlight=Asterisk-GUI
作者: 角色    時間: 2014-12-20 23:29

本帖最後由 角色 於 2014-12-20 23:31 編輯

1. Load the Asterisk-GUI
  1. svn checkout http://svn.digium.com/svn/asterisk-gui/trunk asterisk-gui
複製代碼
2. cd asterisk-gui
  1. ./configure --prefix=/opt/asterisk-13
複製代碼
3. It gives
  1. configure: creating ./config.status
  2. config.status: creating makeopts

  4.                .$$$$$$$$=..
  5.             .$7$7..          .7$7:.
  6.           .$:.                 ,$7.7
  7.         .$7.     7$$           .$77
  8.      ..$.       $$$            .$$7
  9.     ..7$   .?.   $$$   .?.       7$$.
  10.    $.$.   .$$7. $$7 .7$$.      .$$.
  11. .777.   .$$$77$$77$$$7.      $$,
  12. $$~      .7$$$$$$$7.       .$$.
  13. .$7          .7$$$$7:          ?$$.
  14. $$          ?7$$$$$I        .$$7
  15. $$       .7$$$$$$$$      :$$.
  16. $$       $$$7$$$$$$    .$$.
  17. $$        $$   7$$7  .$$    .$$.
  18. $$             $$7         .$$.
  19. 7$$7            7$$        7$$
  20. $$$                        $$
  21.   $$7.                       $  (TM)
  22.    $$$$.           .7$$$  $
  23.      $$$$$$7$$$$$.$$$
  24.        $$$$$$$$.

  26. configure: Package configured for:
  27. configure: OS type  : linux-gnu
  28. configure: Host CPU : x86_64
複製代碼
4.Edit Makefile as below:

# even though we could use '-include makeopts' here, use a wildcard
# lookup anyway, so that make won't try to build makeopts if it doesn't
# exist (other rules will force it to be built if needed)
#ifneq ($(wildcard makeopts),)
  include makeopts
#endif

DESTDIR=/opt/asterisk-13

5. Change

From:
ASTETCDIR=/opt/etc/asterisk

To:
ASTETCDIR=/opt/asterisk-13/etc/asterisk

6. Make it, it gives
  1. [/opt/source/asterisk-gui] # make
  2. +------- Asterisk-GUI Build Complete -------+
  3. + Asterisk-GUI has successfully been built, +
  4. + and can be installed by running:          +
  5. +                                           +
  6. +               make install                +
  7. +-------------------------------------------+
  8. [/opt/source/asterisk-gui] #
複製代碼
7. Install

make install

8. It gives
  1. scripts/takebackup  -->  /opt/asterisk-13/var/lib/asterisk/scripts/

  3. +---- Asterisk GUI Installation Complete ---+
  4. +                                           +
  5. +    YOU MUST READ THE SECURITY DOCUMENT    +
  6. +                                           +
  7. + Asterisk-GUI has successfully been        +
  8. + installed.                                +
  9. +                                           +
  10. +-------------------------------------------+
  11. +                                           +
  12. +          BEFORE THE GUI WILL WORK         +
  13. +                                           +
  14. + Before the GUI will run, you must perform +
  15. + some modifications to the Asterisk        +
  16. + configuration files in accordance with    +
  17. + the README file.  When done, you can      +
  18. + check your changes by doing:              +
  19. +                                           +
  20. +               make checkconfig            +
  21. +                                           +
  22. +-------------------------------------------+
  23. [/opt/source/asterisk-gui] #
複製代碼
9. Edit /opt/asterisk-13/etc/asterisk/manager.http

Change

from:
[general]
enabled = no
;webenabled = yes

to:
[general]
enabled = yes
webenabled = no

add:
[admin]
secret=admin
read=system,call,log,verbose,agent,user,config,dtmf,reporting,cdr,dialplan
write=system,call,agent,user,config,command,reporting,originate


10.

vi /opt/asterisk-13/etc/asterisk/http.conf

[general]
enabled=yes
bindaddr=0.0.0.0
prefix=asterisk
enablestatic=yes


11. make checkconfig

[/opt/source/asterisk-gui] # make checkconfig
--- Checking Asterisk configuration to see if it will support the GUI ---
* Checking for http.conf: OK
* Checking for manager.conf: OK
* Checking if HTTP is enabled: OK
* Checking if HTTP static support is enabled: OK
* Checking if manager is enabled: OK
* Checking if manager over HTTP is enabled: OK
--- Everything looks good ---
* GUI should be available at http://QS:8088/asterisk/static/config/index.html

* Note: If you have bindaddr=127.0.0.1 in /opt/asterisk-13/etc/asterisk/http.conf
   you will only be able to visit it from the local machine.

   Example: http://localhost:8088/asterisk/static/config/index.html

* The login and password should be an entry from /opt/asterisk-13/etc/asterisk/manager.conf
   which has 'config' permission in read and write.  For example:

    [admin]
    secret = mysecret31515
    read = system,call,log,verbose,command,agent,config
    write = system,call,log,verbose,command,agent,config

--- Good luck! ---
[/opt/source/asterisk-gui] #


12. Restart asterisk


13. Using a browser to run the following

http://10.0.88.6:8088/asterisk/static/config/index.html

14. Stop the asterisk and then restart

15 loading ...., Checking write permission for gui folder (problem)

16 Following the previous post [1] to correct the scripts for Asterisk-GUI
作者: 角色    時間: 2014-12-20 23:32

本帖最後由 角色 於 2014-12-20 23:35 編輯

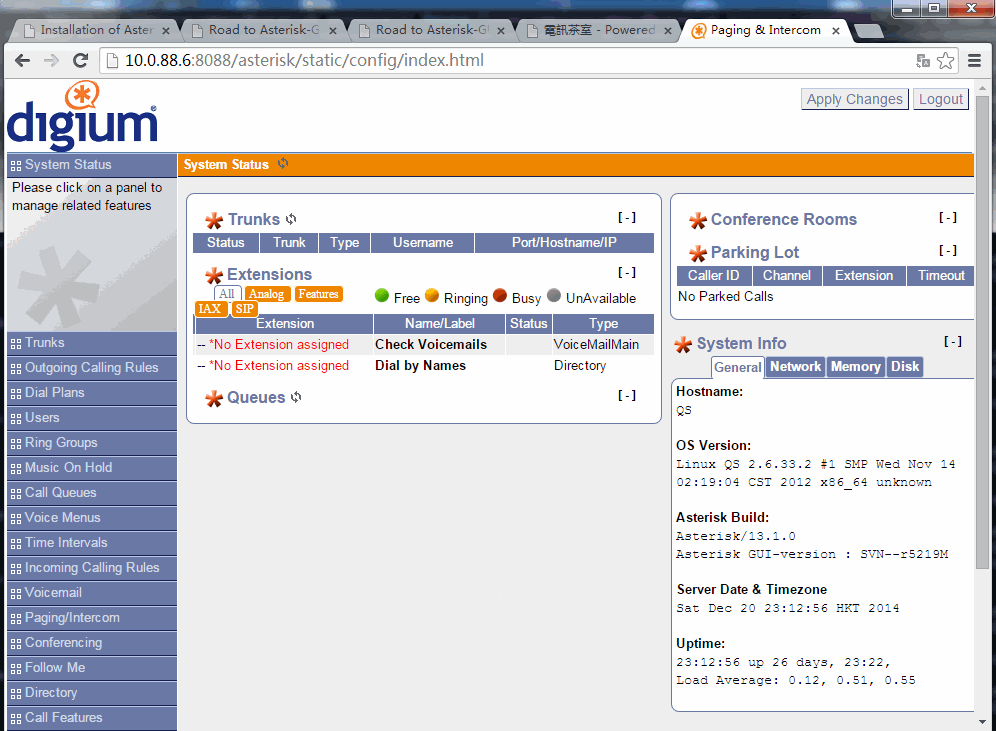

Using the following path to start the Asterisk-GUI
  1. http://10.0.88.6:8088/asterisk/static/config/index.html
複製代碼
using login name=admin and password=admin, it gives


圖片附件: 1196.gif (2014-12-20 23:35, 59.67 KB) / 下載次數 753
