作者: ckleea    時間: 2015-3-31 07:57     標題: A80 OptimusBoard

  1. A80 OptimusBoard specifications:

  3.     SoC – AllWinner Ultra Core A80 4x Cortex 15, 4x Cortex A7 big.LITTLE processor with an unnamed Imagination Technologies PowerVR GPU
  4.     System Memory – 2GB DDR3
  5.     Storage – 8GB NAND Flash
  6.     Video Output – HDMI 1.4a
  7.     Connectivity – Dual band Wi-Fi 802.11 b/g/n, Bluetooth 4.0, and Ethernet (GMAC)
  8.     USB – 1x USB 3.0 OTG HIC, 2x USB 2.0 host ports
  9.     Audio codec – AC100 Codec
  10.     Camera I/F – 12MP MIPI CSI
  11.     Debugging – UART and JTAG
  12.     Expansion – 32-pin GPIO header
  13.     Misc – IR receiver, reset and power LEDs.
  14.     Power management – AXP806, AXP809
  15.     Power Supply – DC IN (5V?), and battery
  16.     Dimensions – 135x70mm
複製代碼

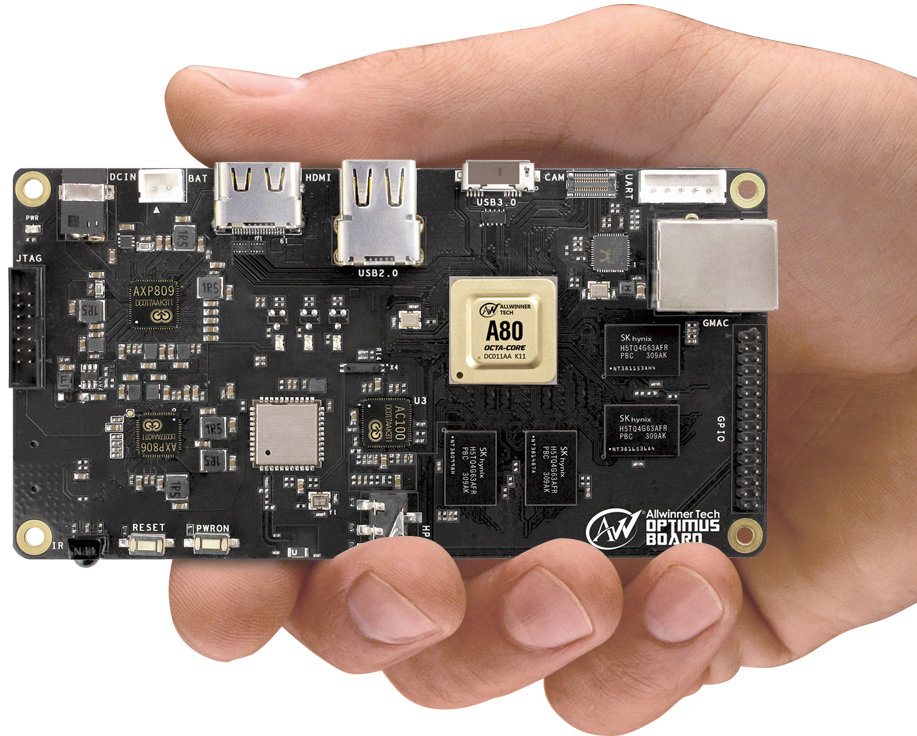

圖片附件: Ultra-octa_Optimus_board.jpg (2015-3-31 07:56, 145.23 KB) / 下載次數 485
