標題: Elastix 新手, 點樣加 2B [打印本頁]

作者: hn4498 時間: 2015-9-17 17:26 標題: Elastix 新手, 點樣加 2B

試來試去, 都唔得, 向各位C兄求教

Version
Kernel
Linux(i386)-2.6.18-348.6.1.el5

Elastix
elastix-2.4.0-8

FreePBX
freePBX-2.11.0-17

Asterisk
asterisk-11.13.0-0
asterisk-perl-1.03-0
asterisk-addons-11.13.0-0

SIP Trunk

type=peer
defaultuser=361xxxx6hk
fromuser=361xxxx6hk
secret=password
host=s2hkbntel.net
fromdomain=s2hkbntel.net
canreinvite=no
insecure=port,invite
qualify=yes
sendrpid=yes
;nat=force_rport,comedia
port=5060
context=from-trunk
;context=from-internal
dtmfmode=auto
disallow=all
allow=g729&ulaw&alaw

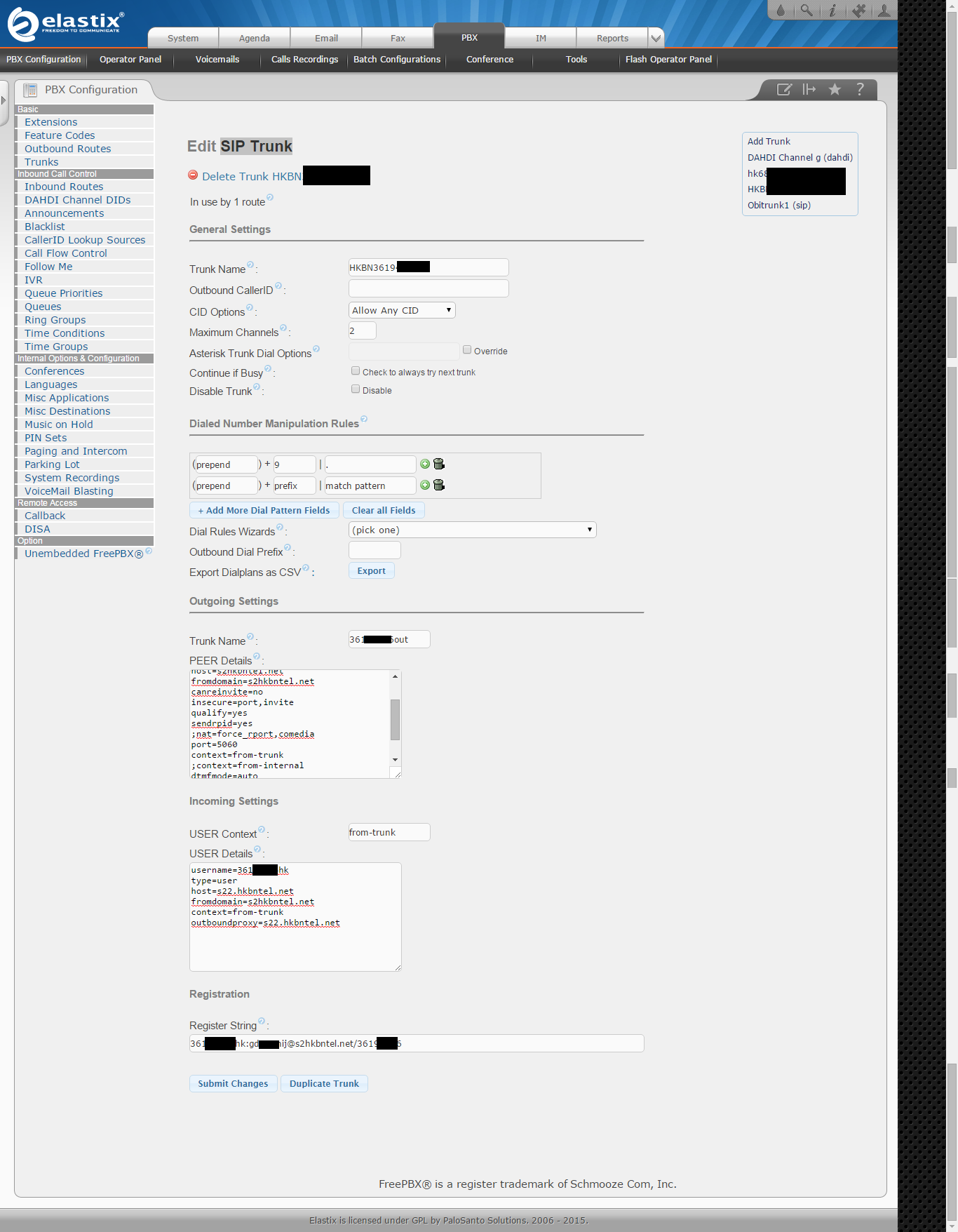

0 SIP Trunk.png

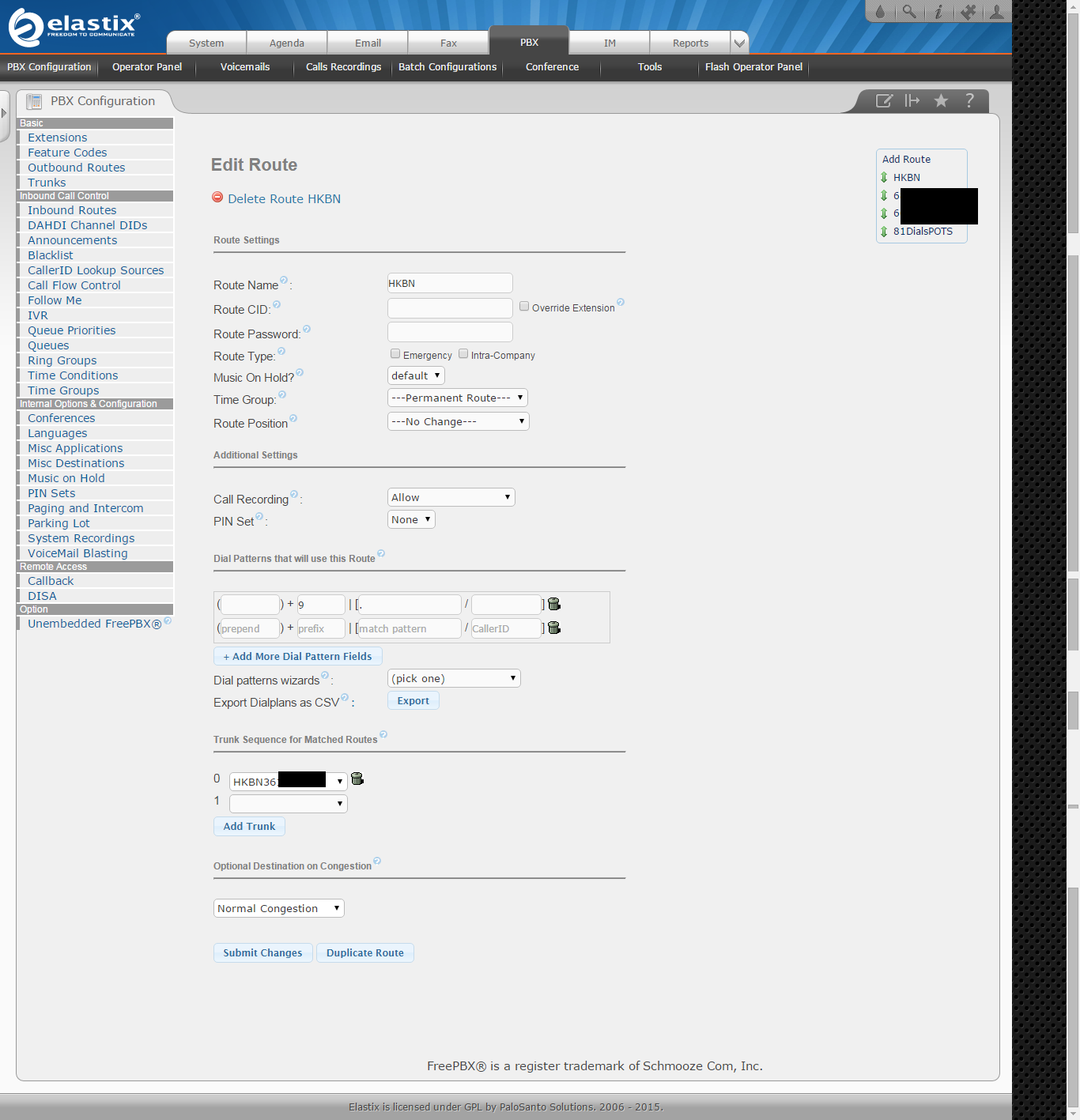

Outbound Call Route
2 Route.png

sip show registry
3 registry.png

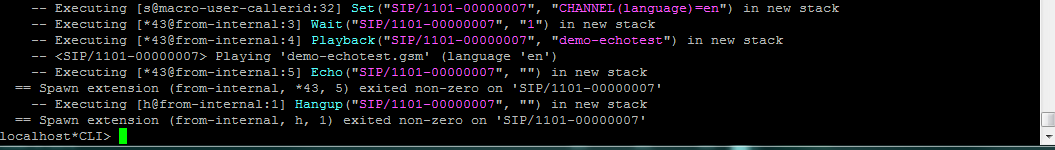

Echo test - success
4 echo test.png

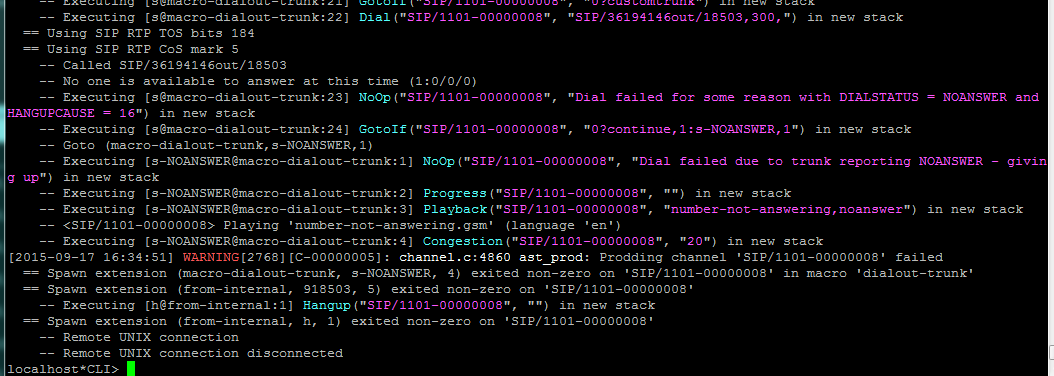

Call 18503 by 2b failed
5 call 18503.png

圖片附件: [SIP trunk] 0 SIP Trunk.png (2015-9-17 17:17, 367.3 KB) / 下載次數 1156
http://www.telecom-cafe.com/forum/attachment.php?aid=3711&k=c5a6e9d23dc7acad761ac9f2e2294831&t=1765653390&sid=dABU2O

圖片附件: [Outbound route] 2 Route.png (2015-9-17 17:17, 307.87 KB) / 下載次數 1165
http://www.telecom-cafe.com/forum/attachment.php?aid=3712&k=416cd4fdf0a8d378365fb5802276204b&t=1765653390&sid=dABU2O

圖片附件: [Show Registry] 3 registry.png (2015-9-17 17:17, 12.93 KB) / 下載次數 1132
http://www.telecom-cafe.com/forum/attachment.php?aid=3713&k=213fa9f1f0e3b9d6d389c52fc82dc3b9&t=1765653390&sid=dABU2O

圖片附件: [Echo Test] 4 echo test.png (2015-9-17 17:17, 26.87 KB) / 下載次數 1134
http://www.telecom-cafe.com/forum/attachment.php?aid=3714&k=61873e584b33e417a161a59cbfb44c96&t=1765653390&sid=dABU2O

圖片附件: [18503 failed] 5 call 18503.png (2015-9-17 17:17, 66.6 KB) / 下載次數 1168
http://www.telecom-cafe.com/forum/attachment.php?aid=3715&k=ce57883232a7527bb9223df79adb0987&t=1765653390&sid=dABU2O
