作者: 角色 時間: 2018-1-1 16:25 標題: OBi110 + ComNet Phone

本帖最後由角色於 2018-1-1 17:39 編輯

There are some members requesting the configuration of ComNet Phone in OBi devices. The following example shows the settings in OBi110 ATA box.

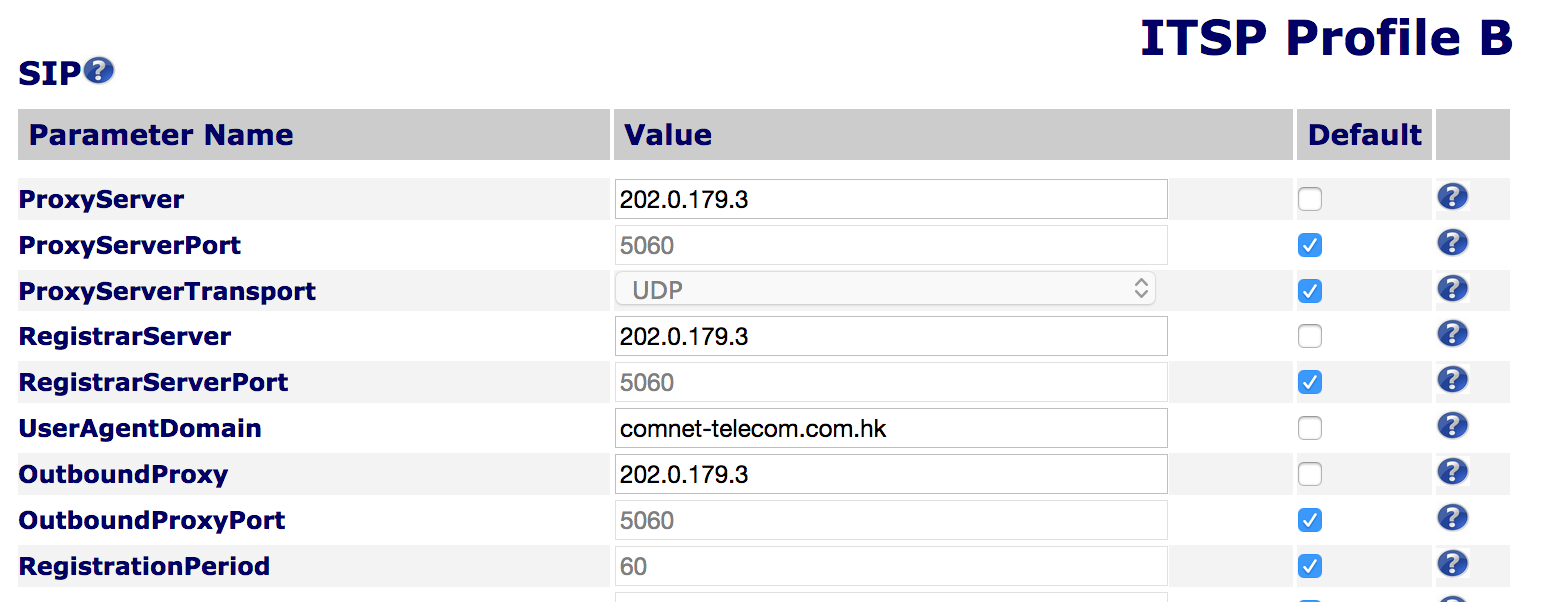

1. Select the tab Service Provider: Server Profile B. OBi110 is used for demonstration
Service Providers -> ITSP Profile B -> SIP
Screen Shot 2018-01-01 at 4.13.35 pm.png

Screen Shot 2018-01-01 at 4.13.35 pm.png

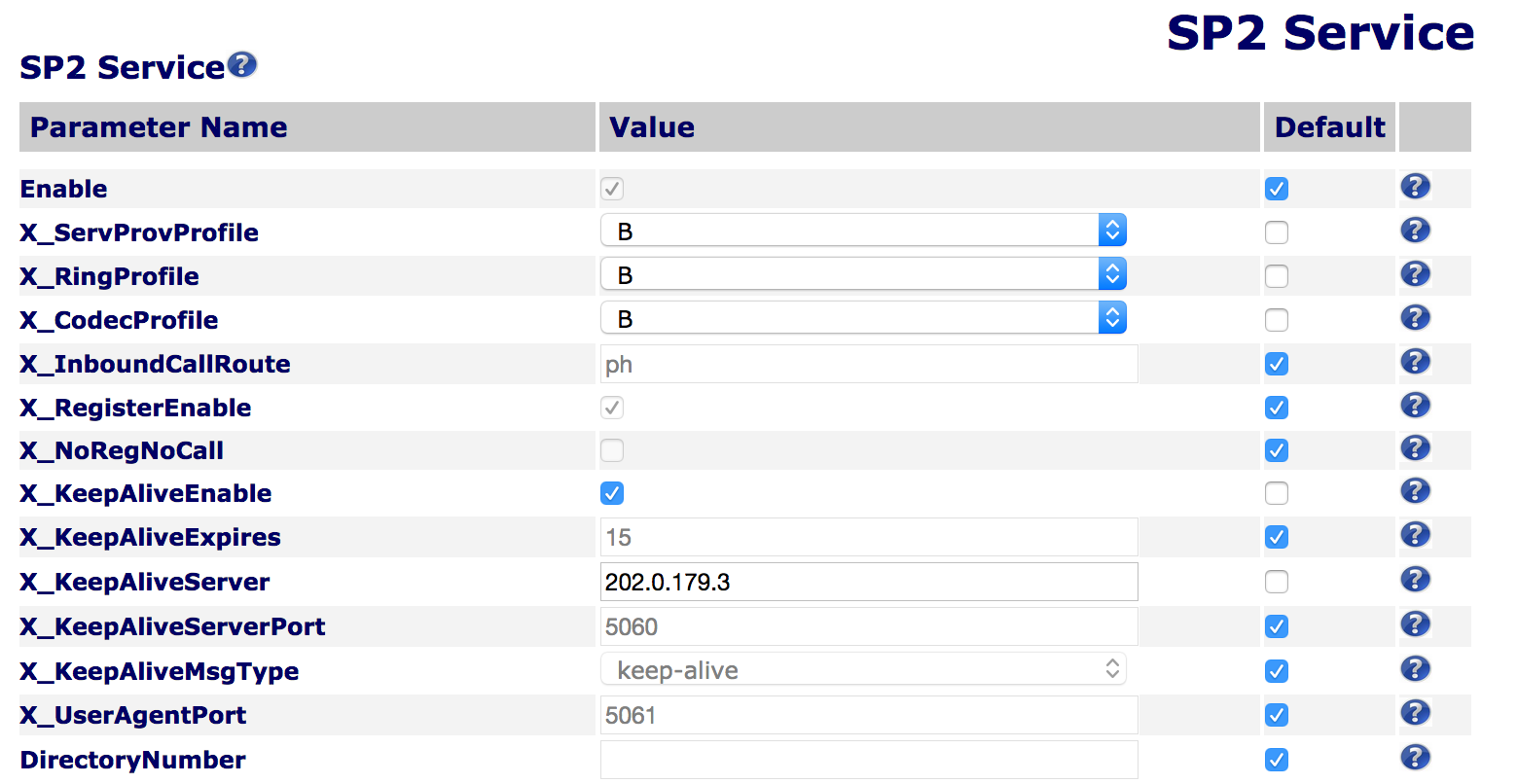

2. Select the Voice Services: SP2 service
Voice Services - SP2 Service:
Screen Shot 2018-01-01 at 4.14.17 pm.png

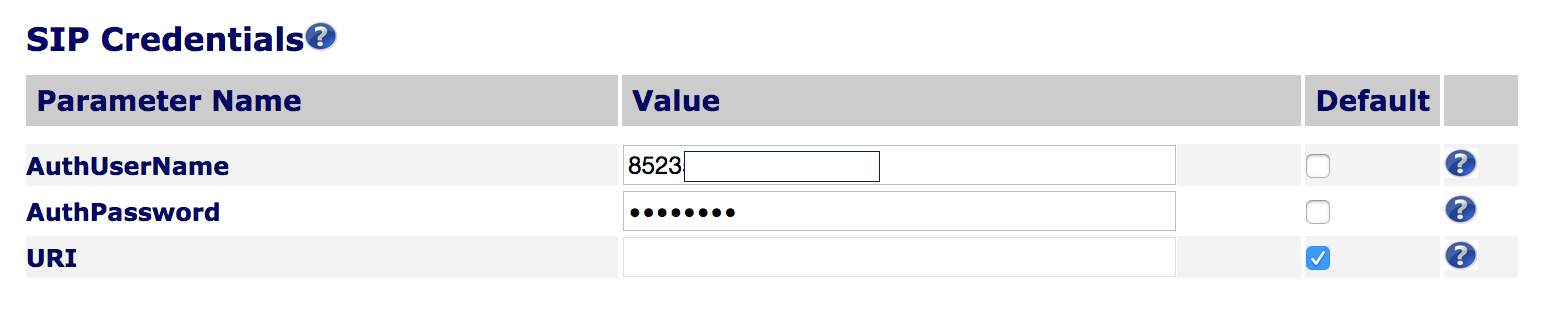

The ComNet phone telephone number and password
Screen Shot 2018-01-01 at 4.14.34 pm.png

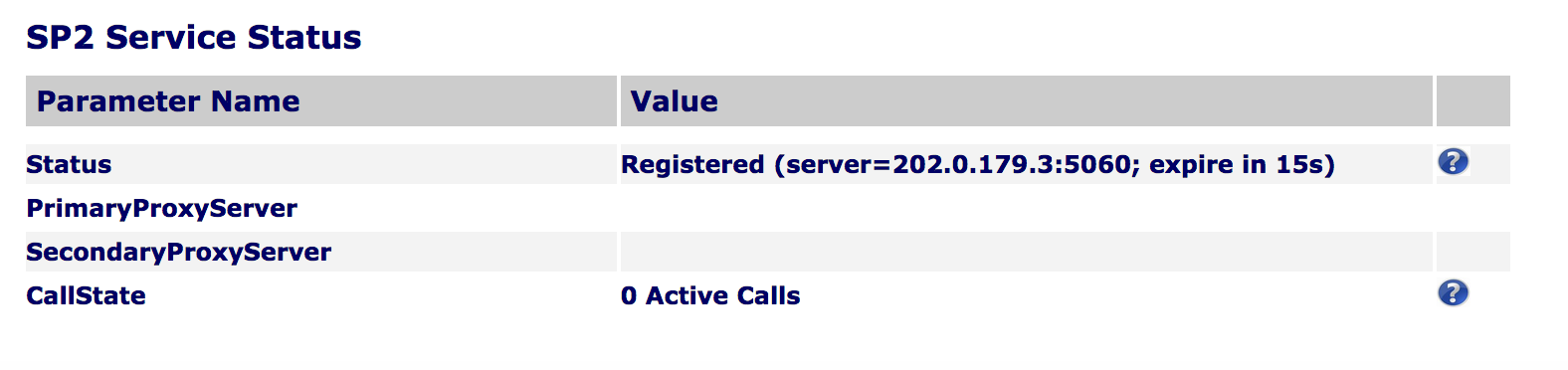

Reboot the Obi device, you will get the following screen under the System Status
Screen Shot 2018-01-01 at 4.25.55 pm.png
